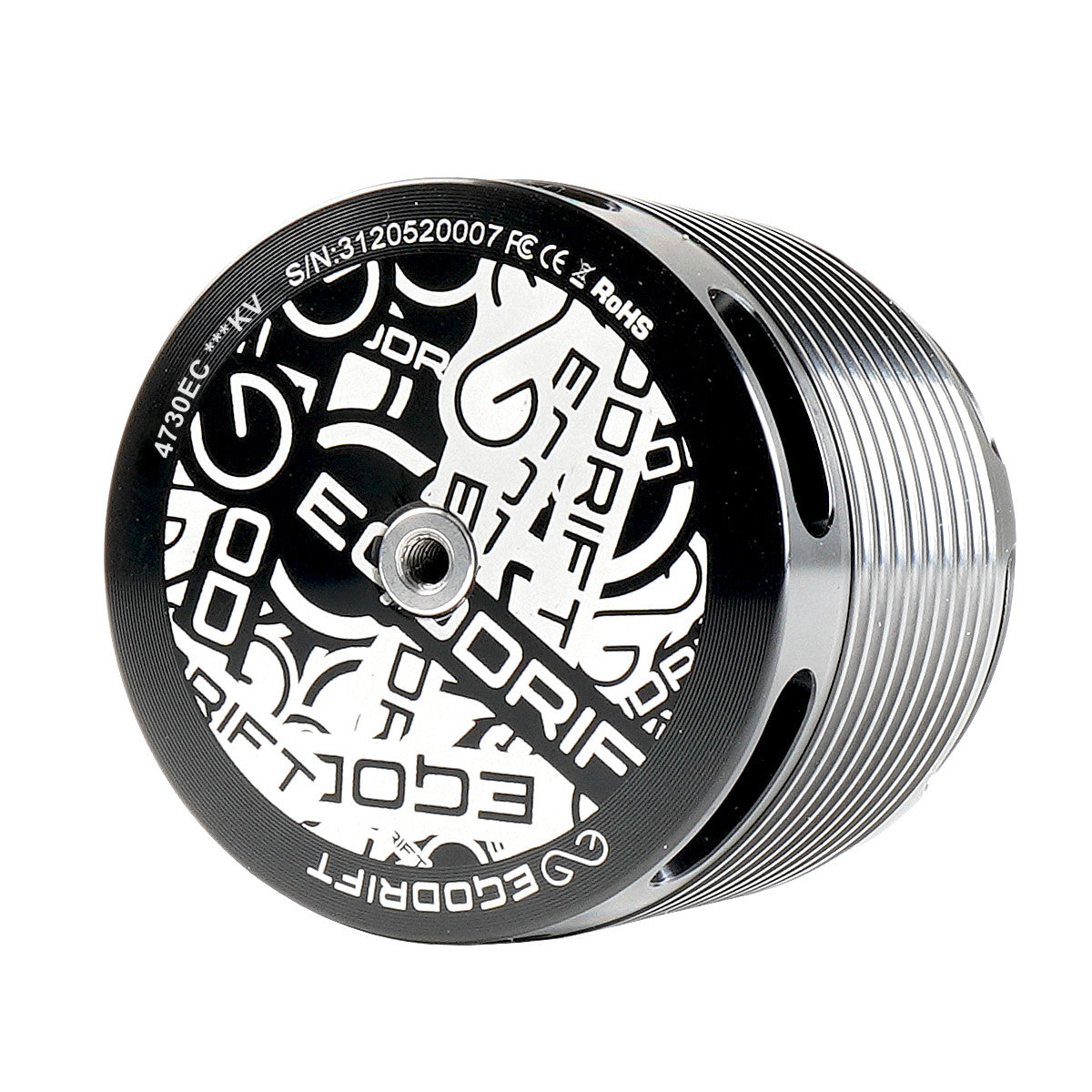

Egodrift Tengu 4730EC Eclipse

World’s First 0.1mm Lamination Heli Motors – Introducing the EGODRIFT 47EC Eclipse Series

Meet the all-new 4730EC and 4726EC Eclipse Series – the first and only heli motors in the world to feature revolutionary 0.1mm stator laminations, delivering unprecedented smoothness, efficiency, and responsiveness.

The reduced eddy currents and cleaner commutation result in a near-instantaneous throttle response and yet improved efficiency and performance. Experience a new generation of power, torque, and control with the 47EC Eclipse Series.

• Manufacturer: EGODRIFT
• Stator size: 4730
• Motor configuration: 12N10P
• Motor weight: 554g (540Kv version)
• Motor wire type: High temperature copper wire
• Motor shaft: Hardened Steel
• Mounting hole pattern: 4xM4(30)
• Laser Design: EGODRIFT Stickerbomb
• LiPo cells: 12S, 14S
• Stator diameter: 47 mm
• Stator height: 30 mm
• Stator lamination: 0.1 mm (++)

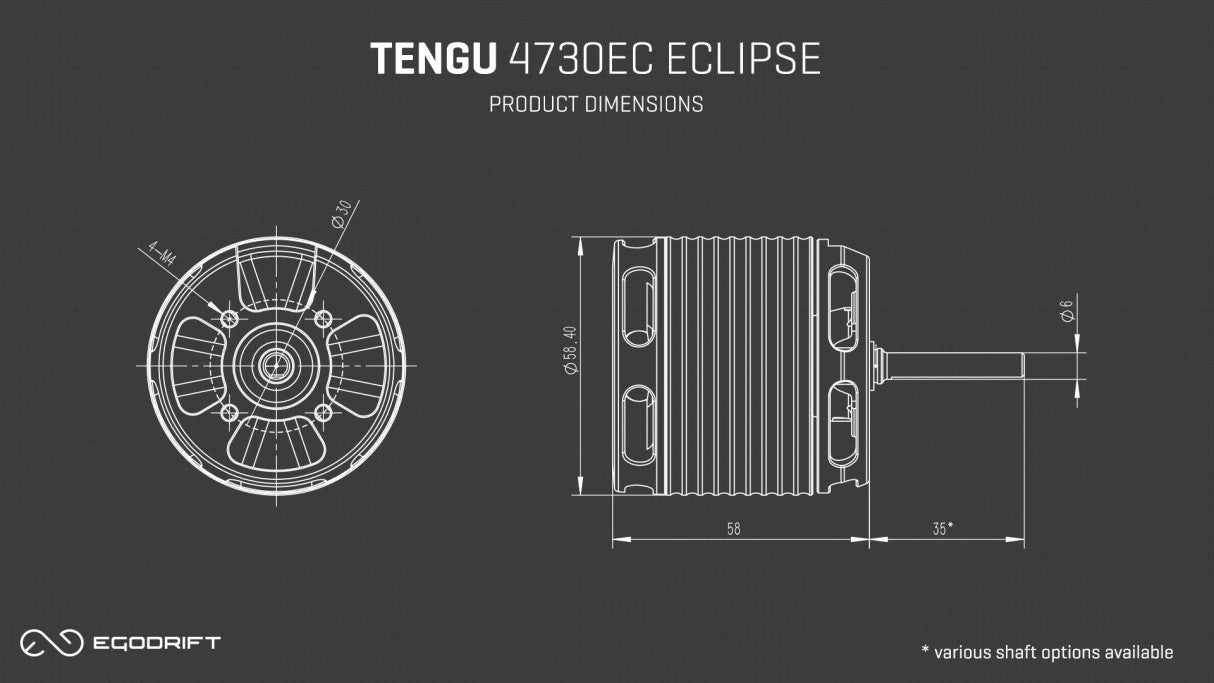

• Body Length: 58.00 mm
• Diameter: 58.40 mm
• Connection: Gold Plated Amass Bullet Connectors
