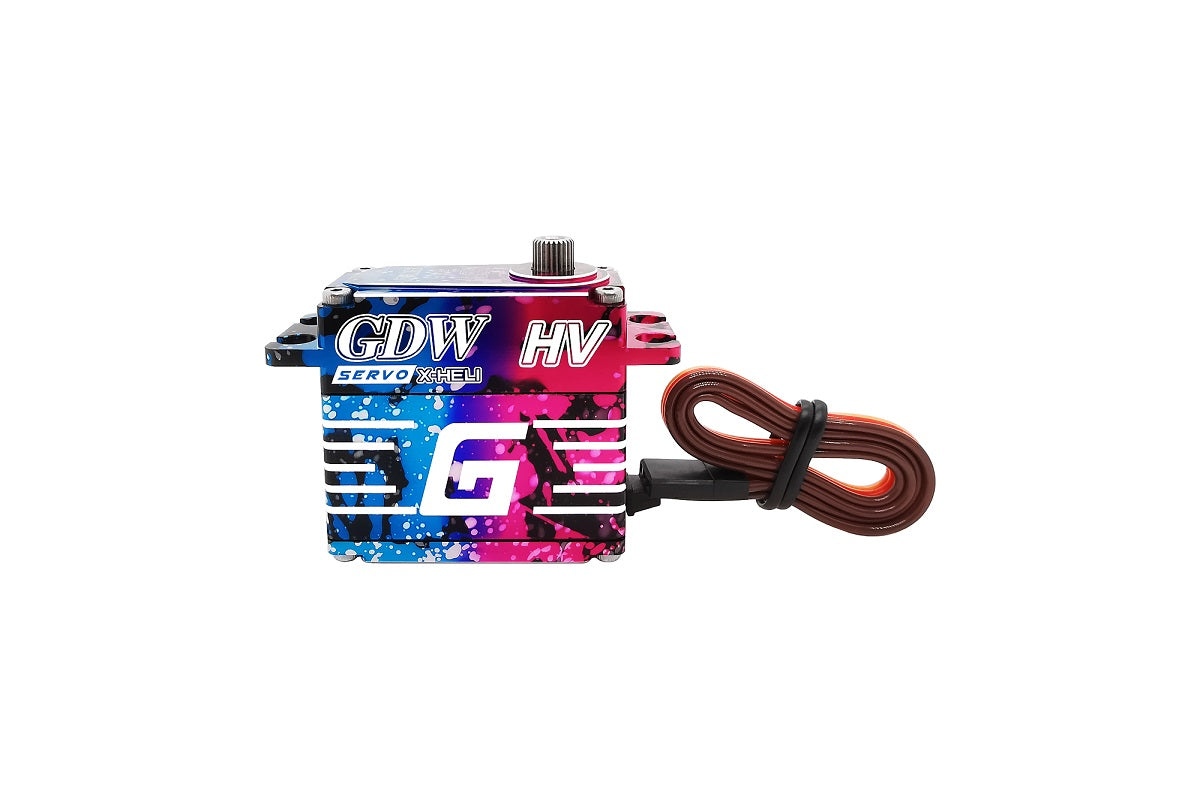

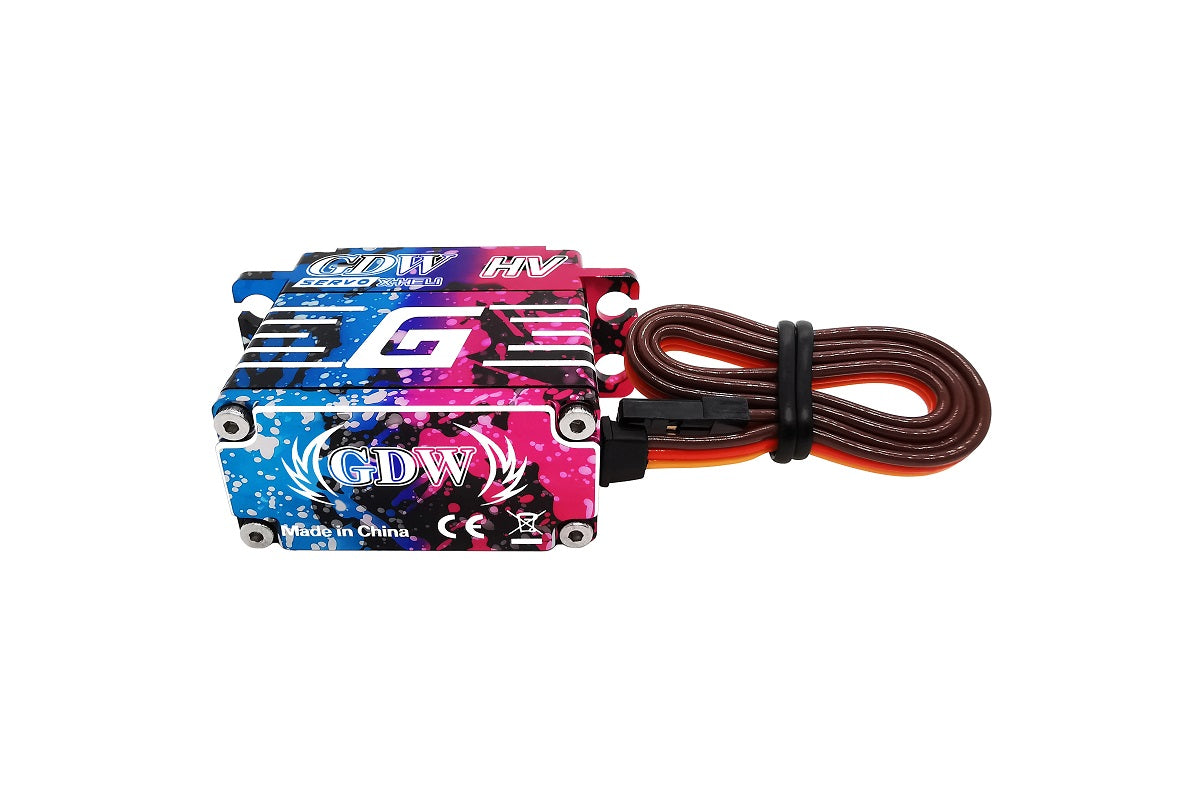

GDW G95 Tail Servo
GDW G95 Tail Servo
Regular price
$78.95
Regular price
Sale price
$78.95
Unit price
per
Couldn't load pickup availability
| G95规格书 General Specs | ||||||||||
| Operation Voltage Range 电压范围 | 4.8V up to 8.4 V | |||||||||
| Operation Temperature Range 适应温度 | -20C°up to +60C° | |||||||||
| Working frequency 工作频率 | 760us/333Hz | |||||||||
| 测试参数 Bench tests reported values | ||||||||||
| 电压 Test Voltage | 6.0V | 7.4V | 8.4V | |||||||
| 速度 Speed | 0.08sec/60° | 0.07sec/60° | 0.06sec/60° | |||||||
| 扭力 Torque | 18Kg.cm | 22Kg.cm | 25Kg.cm | |||||||
| Fast continuous operating current 快速持续工作电流 |
800mA | 1000mA | 1200mA | |||||||
| 堵转电流 Stall current | 4600mA | 5500mA | 6000mA | |||||||
| 死区 Dead Band Width | 2µ | |||||||||
| 一般数据 General Data | ||||||||||
| 电机型号 Motor Type | 无刷电机 Brushless motor 17*18mm | |||||||||
| 电位器类型 Potentiometer Type | 日本noble 220° Japan noble 220° | |||||||||
| 芯片类型 Chip type | 数字 Digital | |||||||||
| 重量 Weight | 77±1g | |||||||||
| 齿轮组材质 Gear Material | 钢 steel | |||||||||
| 输出齿数 Horn Gear Spline | 25T φ5.9mm | |||||||||
| 线长 Wire length | 330 ±5mm | |||||||||
| 线径 Wire Diameter | 0.3mm² | |||||||||
| 线芯数量 Number of wire cores | 60 | |||||||||
