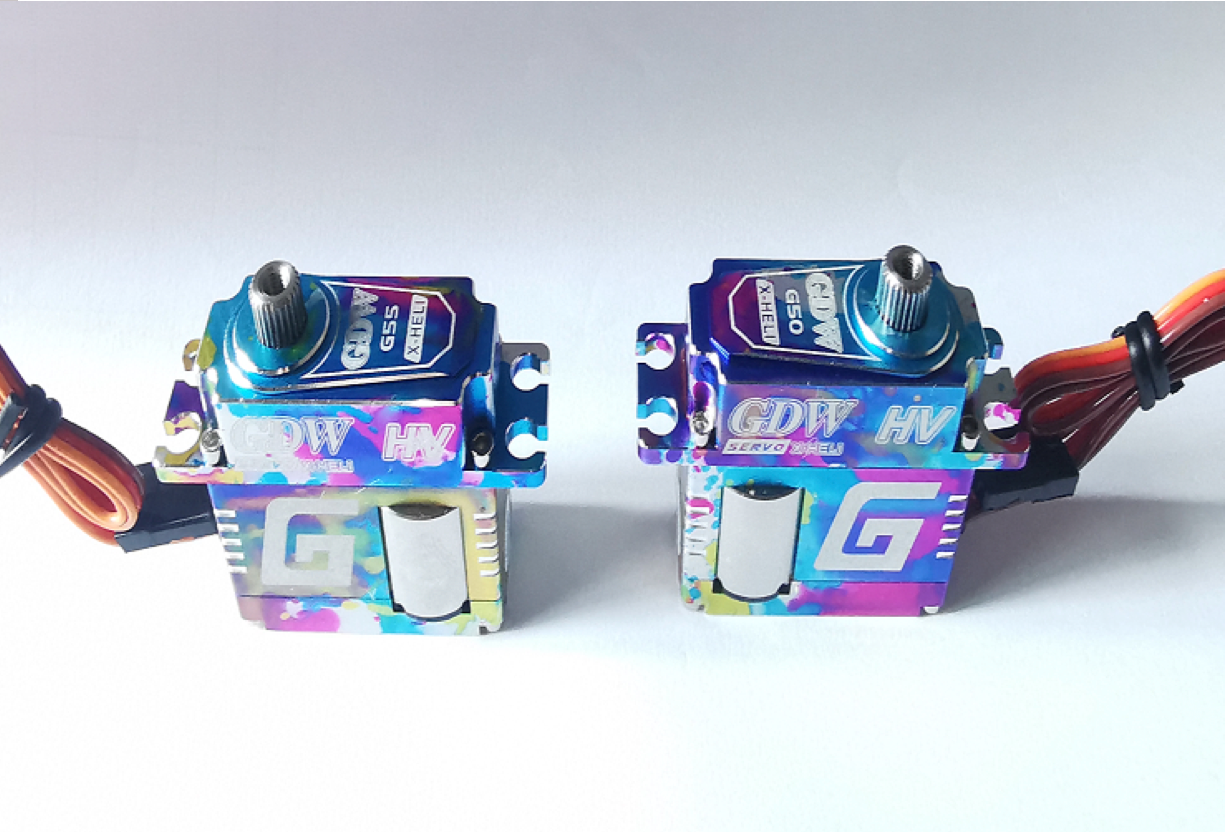

GDW G55 Servo
GDW G55 Servo
Regular price
$71.50
Regular price
Sale price
$71.50
Unit price
per
Couldn't load pickup availability
| G55规格书 General Specs | |||||||||
| Operation Voltage Range 电压范围 | 4.8V up to 8.4 V | ||||||||
| Operation Temperature Range 适应温度 | -20C°up to +60C° | ||||||||
| Working frequency 工作频率 | 760us/333Hz | ||||||||
| 测试参数 Bench tests reported values | |||||||||
| 电压 Test Voltage | 6.0V | 7.4V | 8.4V | ||||||
| 速度 Speed | 0.06sec/60° | 0.05sec/60° | 0.045sec/60° | ||||||
| 扭力 Torque | 5.0Kg.cm | 6.0Kg.cm | 7.0Kg.cm | ||||||
| Fast continuous operating current 快速持续工作电流 |
700mA | 900mA | 1100 | ||||||
| 堵转电流 Stall current | 3800mA | 4500mA | 5000mA | ||||||
| 死区 Dead Band Width | 2µ | ||||||||
| 一般数据 General Data | |||||||||
| 电机型号 Motor Type | 无刷电机 Brushless motor 17*15mm | ||||||||
| 电位器类型 Potentiometer Type | 日本noble 220° Japan noble 220° | ||||||||
| 芯片类型 Chip type | 数字 Digital | ||||||||
| 重量 Weight | 47g±1g | ||||||||
| 齿轮组材质 Gear Material | 镀钛处理 The surface treatment of titanium | ||||||||
| 输出齿数 Horn Gear Spline | 25Tφ5.9mm | ||||||||
| 线长 Wire length | 220 ±0.5mm | ||||||||
| 线径 Wire Diameter | 0.15mm² | ||||||||
| 线芯数量 Number of wire cores | 30 | ||||||||
