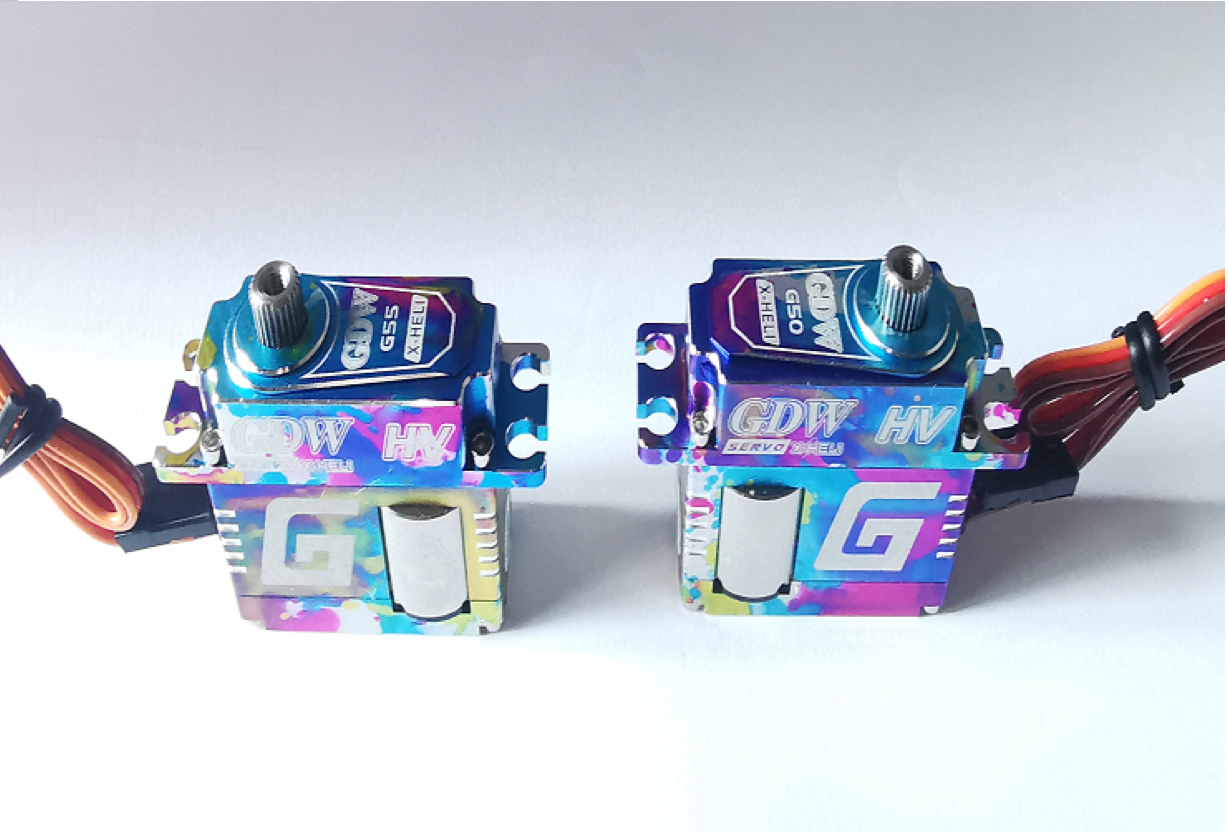

GDW G50 SERVO

GDW G50 SERVO

  • $71.50


G50规格书 General Specs
Operation Voltage Range 电压范围 4.8V up to 8.4 V
Operation Temperature Range 适应温度 -20C°up to +60C°
Working frequency 工作频率 1520us/333Hz
测试参数 Bench tests reported values
电压 Test Voltage 6.0V 7.4V 8.4V
速度 Speed 0.09sec/60° 0.08sec/60° 0.07sec/60°
扭力 Torque 10Kg.cm 12Kg.cm 13Kg.cm
Fast continuous operating current
快速持续工作电流
700mA 900mA 1100
堵转电流 Stall current 3800mA 4500mA 5000mA
死区 Dead Band Width
一般数据 General Data
电机型号 Motor Type 无刷电机 Brushless motor 17*15mm
电位器类型 Potentiometer Type 日本noble 220° Japan noble 220°
芯片类型 Chip type 数字 Digital
重量 Weight 47±1g
齿轮组材质 Gear Material 镀钛处理 The surface treatment of titanium
输出齿数 Horn Gear Spline 25Tφ5.9mm
线长 Wire length 220 ±0.5mm
线径 Wire Diameter 0.15mm²
线芯数量 Number of wire cores 30
