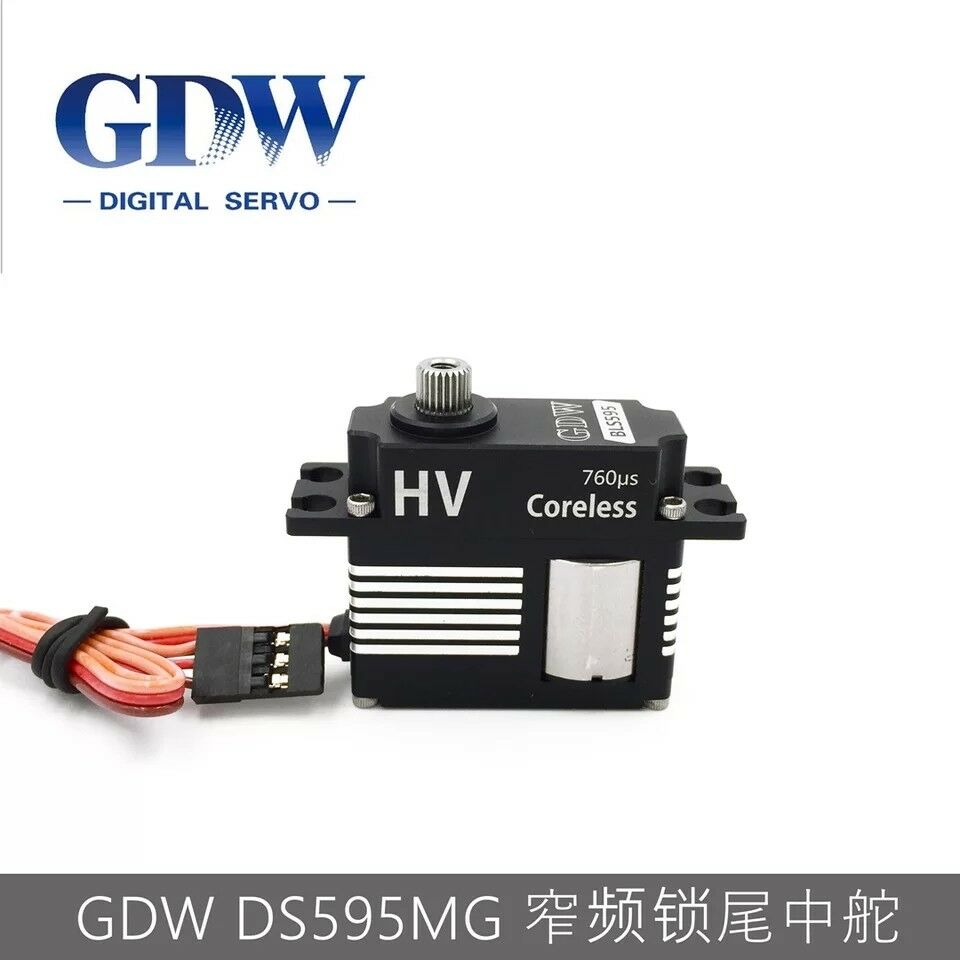

GDW DS595MG Servo

GDW DS595MG Servo

  • $48.50


DS595MG规格书 General Specs
Operation Voltage Range 电压范围 4.8V up to 8.4 V
Operation Temperature Range 适应温度 -20C°up to +60C°
Working frequency 工作频率 760us/333Hz
测试参数 Bench tests reported values
电压 Test Voltage 6.0V 7.4V 8.4V
速度 Speed 0.04sec/60° 0.035sec/60° 0.03sec/60°
扭力 Torque 4.5Kg.cm 5.0Kg.cm 5.5Kg.cm
Fast continuous operating current
快速持续工作电流
1000mA 1200mA 1500mA
堵转电流 Stall current 2000mA 2200mA 2500mA
死区 Dead Band Width
一般数据 General Data
电机型号 Motor Type 空心杯电机 Coreless motor 17*15mm
电位器类型 Potentiometer Type 日本noble 220° Japan noble 220°
芯片类型 Chip type 数字 Digital
重量 Weight 46g ±1g
齿轮组材质 Gear Material 镀钛处理 The surface treatment of titanium
输出齿数 Horn Gear Spline 25T φ5.9mm
线长 Wire length 220 ±5mm
线径 Wire Diameter 0.15mm²
线芯数量 Number of wire cores 30595
