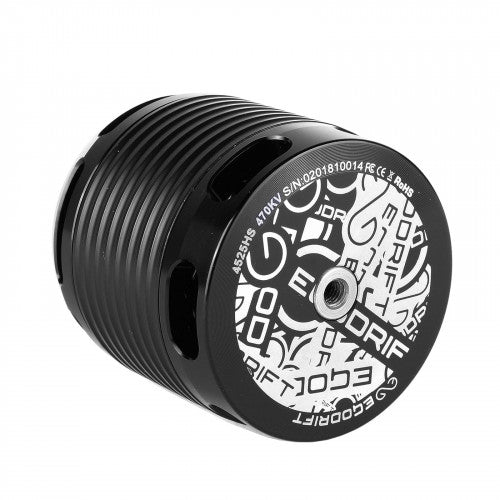

EGODRIFT TENGU 4525HS / 470KV (12-14S)

  • $299.99


  • Manufacturer: EGODRIFT
  • Stator size: 4525
  • Motor configuration: 12N10P
  • Motor weight: 460g
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.2mm
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • LiPo cells: 12S, 14S
  • Motor kV: 470kV
  • Stator diameter: 45 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)

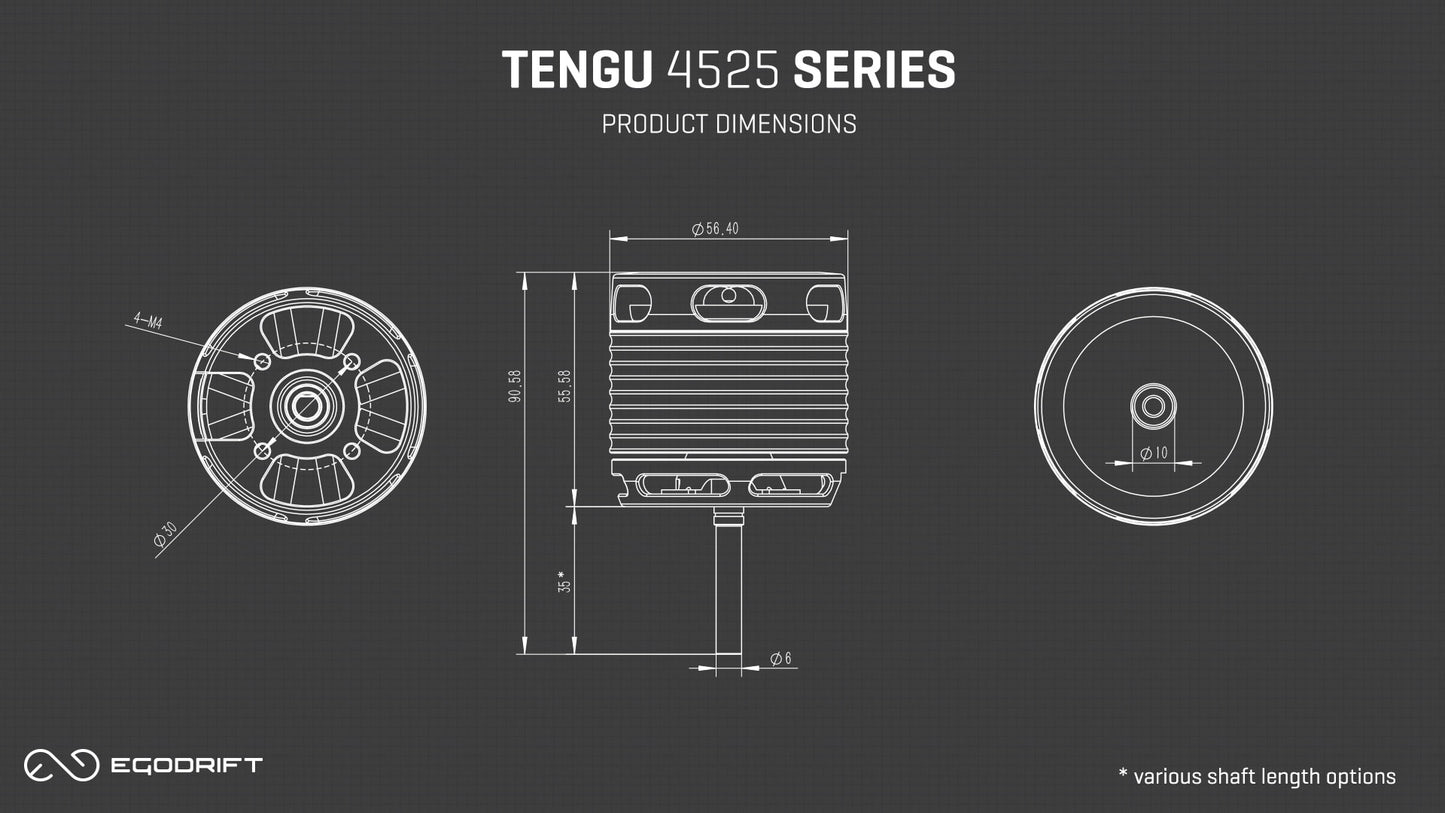

  • Body Length: 55.58mm (2.19 inch)
  • Diameter: 56.4mm (2.22 inch)
  • Screw hole diameter: 4,0 mm
  • Motor hole pattern: 30mm
  • Idle current: 2.9A
  • Maximum Current: 90A (Peak: 130A / 2 seconds)
  • Maximum Power: 4520W (Peak: 6630W / 2 seconds)
  • Internal resistance: 16 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
