EGODRIFT TENGU 3220HS / 960KV (6S)

  • $129.99


  • Manufacturer: EGODRIFT
  • Stator size: 3220
  • Motor configuration: 12N10P
  • Motor weight: 177g
  • Base Colour: Black
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor shaft: Hardened Steel
  • Shaft diameter: 5.0 mm
  • LiPo cells: 6S
  • Motor kV: 960 kV
  • Stator diameter: 32 mm
  • Stator height: 20 mm
  • Stator lamination: 0.15 mm (+)

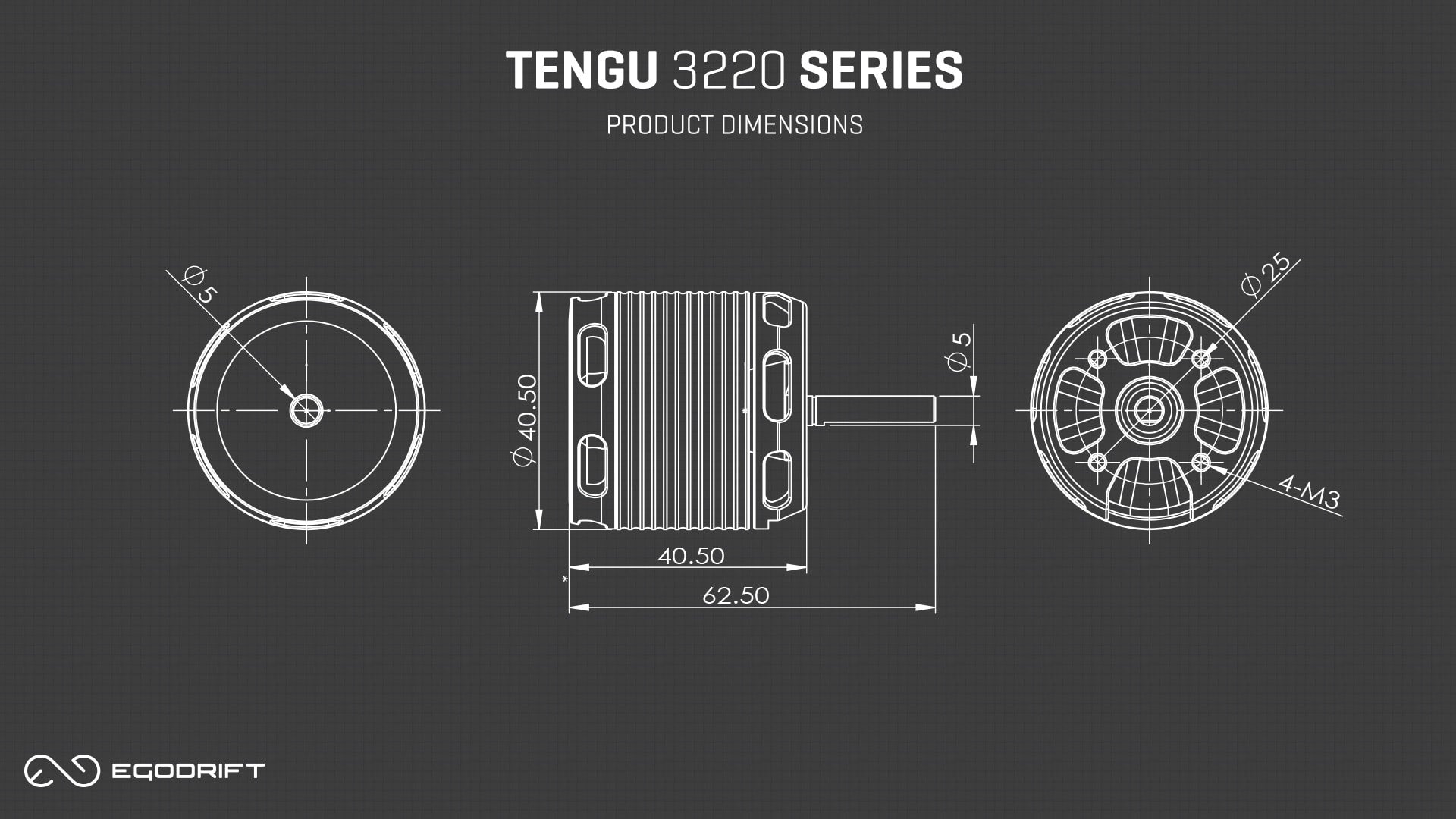

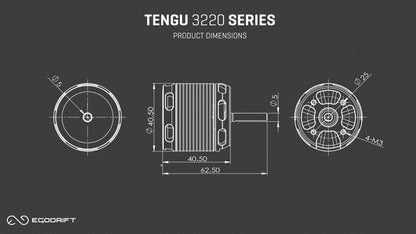

  • Body Length: 40.5mm (1.59 inch)
  • Diameter: 40.5mm (1.59 inch)
  • Screw hole diameter: 3,0 mm
  • Motor hole pattern: 25mm
  • Idle current: 3.1A
  • Maximum Current: 60A (Peak: 70A / 2 seconds)
  • Maximum Power: 1680W (Peak: 2000W / 2 seconds)
  • Internal resistance: 22.1 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou
