105HZ Heli Engine

105HZ Heli Engine

  • $479.99
  • Save $220

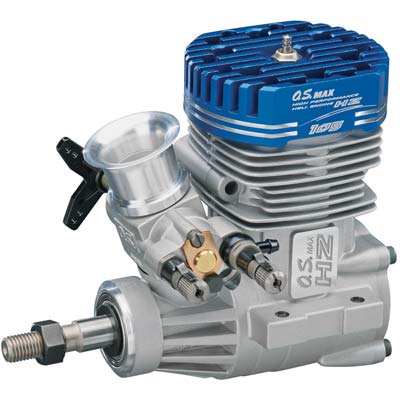

This is the 105HZ 1.05 cu in Helicopter Engine from O.S. Engines.

FEATURES: Same mounting dimensions as a .90 cu in engine
          Machined blue anodized aluminum heatsink cylinder head
          Velocity stack increases airflow and enhances engine performance
          Backplate accepts the Futaba BPS-1 RPM sensor for the GY701 and
            CGY750 gyros
          Ideal bore and stroke ratio for lowest vibration
          Two year limited warranty through Hobby Services beginning at date of
            purchase

INCLUDES: 105HZ 1.05 cu in Helicopter Engine with 61E Carburetor
          #8 Glow Plug
          Air Funnel
          0.1mm Head Gasket
          0.2mm Head Gasket (installed)
          Instruction Manual

REQUIRES: Fuel: Heli blend with 15% nitro content
          Glow starter and field equipment

SPECS:    Displacement: 1.048 cu in (17.17 cc)
          Bore: 1.142" (29mm)
          Stroke: 1.024" (26mm)
          RPM Range: 2,000 - 16.500
          Output: 3.7 ps @ 15,000 RPM
          Weight: 21.03oz (596g)
          Crankshaft Size: UNF 5/16-24
          Carburetor Settings;
            High Speed Needle Valve: Approx. 2 turns open from fully closed
            Medium Speed Needle valve: 1 turn open from fully closed
            Idle Mixture Control Screw: At basic position when engine left
             factory
          Distance/Center of Mounting Holes Same Side: 0.98" (25mm)
          Distance/Center of Mounting Holes Opposite Side: 2.04" (52mm)
          Crankcase Width Below Mounting Tabs: 1.7" (43mm)
          Crankcase Width at Mounting Tabs: 2.4" (61mm)
          Width from Throttle Arm to Center: 1.6" (42mm)
          Height from Bottom of Mounting Tabs to Cylinder Head: 3.1" (79mm)
          Height/Bottom Mounting Tabs to Muffler Mounting Holes: 1.7" (42.8mm)
          Height/Bottom of Crankcase to top of Cylinder Head: 3.9" (99mm)
          Length from Backplate to Front Bearing: 3.2" (82.6mm)
          Length from End of Crankshaft to Center of Engine: 3.5" (88.7mm)
